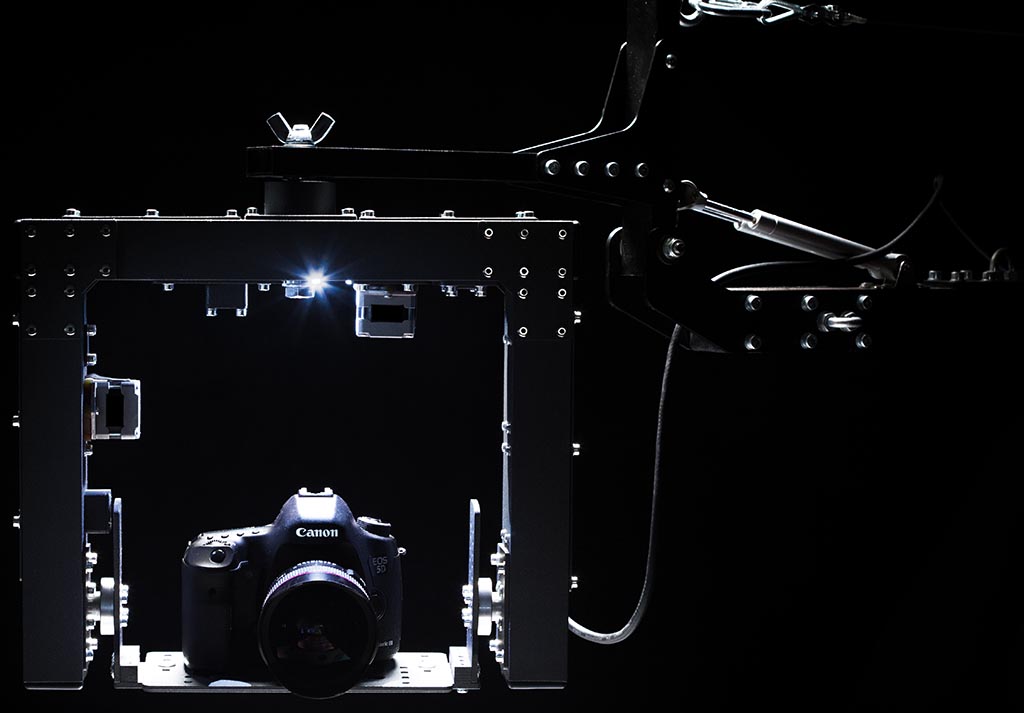

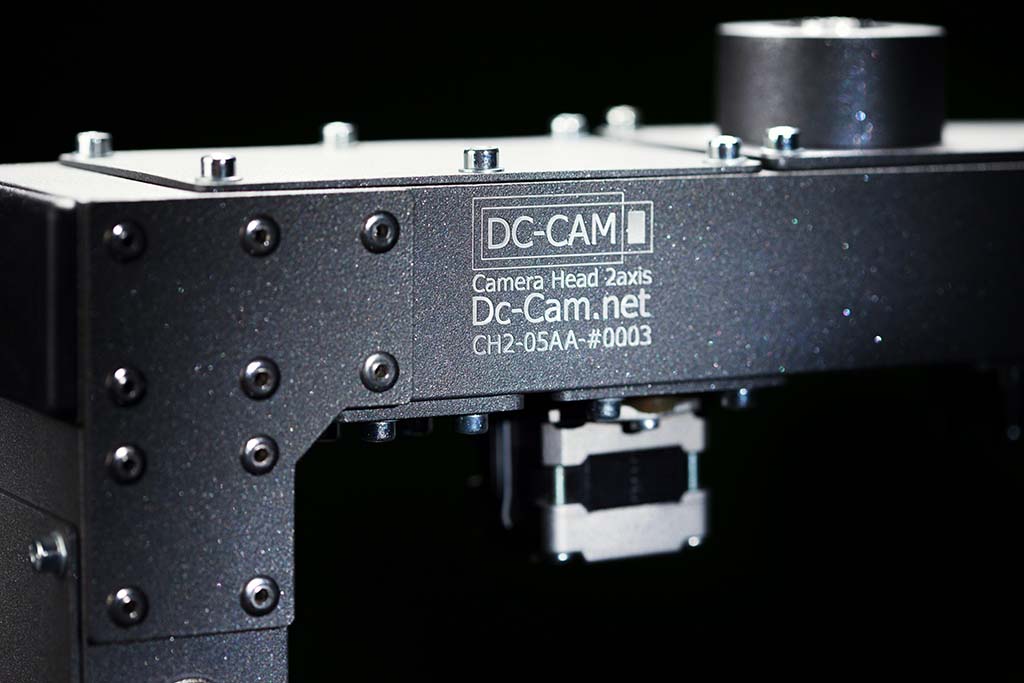

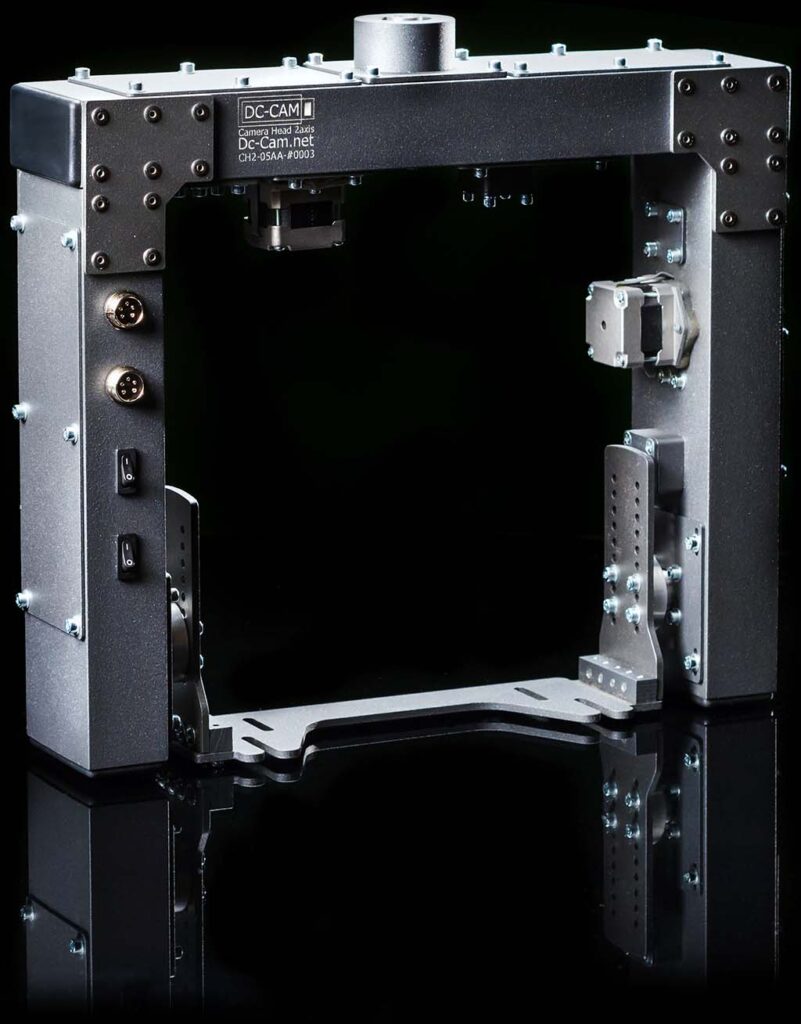

2 Axis panoramic head for camera jib.

The motorized panoramic head is designed to precisely rotate the video or camera along two axes — X and Y. The toothed belt drive allows you to minimize the noise level.
The motors used in this head allow for precise movements that are not affected by torsional resistance or camera balance.

The compact and closed design ensures long continuous operation both indoors and outdoors.

The camcorder or camera is attached to the head with standard 3/8″ or 1/4″ screws. The design of the head allows you to install an interchangeable head plate on the camera, and install additional accessories (for example, external microphones) and carry out movements with them.

The head is fastened through a through hole using an M12 bolt. The most convenient mounting system for any type of camera cranes or trolleys.

The head is powered by an external power supply. Additional equipment is provided for battery operation, V-Mount system and some SONY batteries, as well as from the camera itself or batteries built into the head.

The head is equipped with a backlight for easy mounting of the camera in low light conditions. The backlight is switched on by the lower switch.

Benefits: This product is a complete precision and versatile tool that can be mounted on any operator’s crane or trolley. You will appreciate the qualities that are embedded in it: quiet running, smooth movement, a minimum of external equipment.

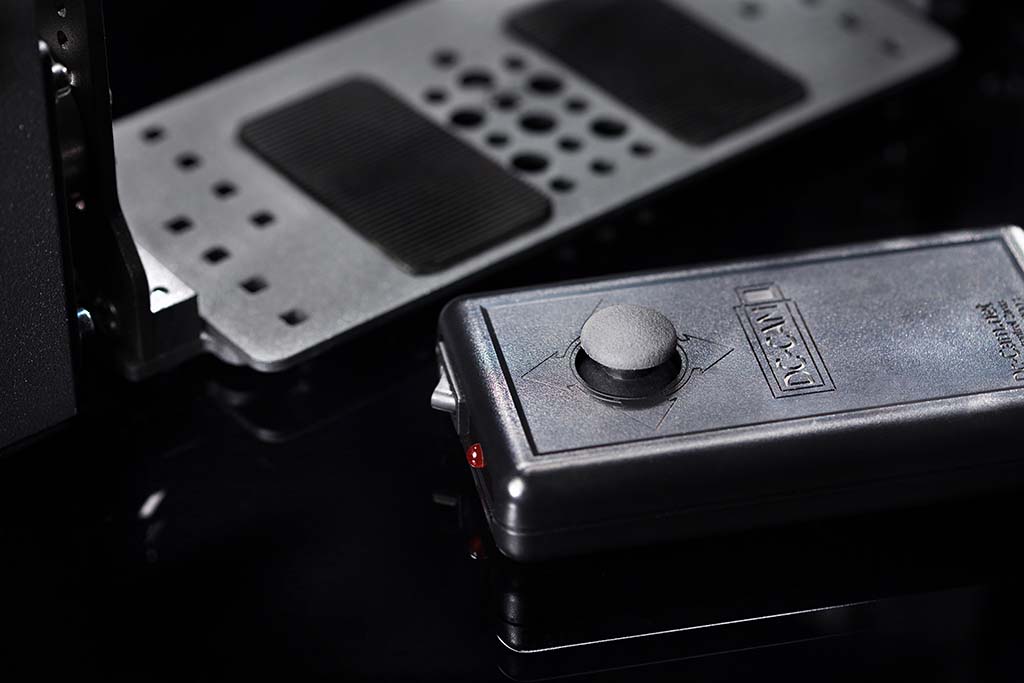

WIRELESS CONTROL
The remote is powered by 2 AA batteries. It has a switch and LED signaling the work. The average battery life is approximately 400 hours of continuous use. The internal converter works in such a way that it discharges the battery to the very end. Therefore, it is not advisable to install batteries, since with such a deep discharge they will be damaged.

When you press the joystick, the rotation speed increases. This is convenient for moving the head at high speed, and at the same time it is comfortable to work at low speeds. The joystick calibrates zero when the car is turned on. If it is damaged, it will calibrate and will not constantly rotate sideways.

Compatibility:

The remote has an advanced data transfer protocol. It has addressing, which eliminates the influence of interference and other devices. Each head has a unique address. In one location, several heads can work without interfering with each other.

The head can be controlled with a DMX512 console, which is often used in hall equipment.
